Adjustment Dimensions

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

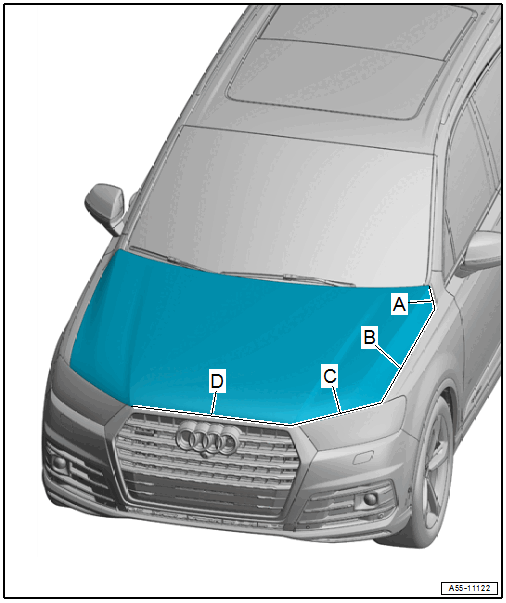

GWWA55-11122Courtesy of AUDI
  1. A -  Hood to the Rear Fender
    • Gap dimension = 2.9 mm
  2. B -  Front Lid to Front Bumper
    • Gap dimension = 2.9 mm
  3. C -  Hood to Headlamp
    • Gap dimension = 5.2 mm
  4. D -  Hood to Radiator Grille
    • Gap dimension = 4.2 mm
