Fuel Filler Door Unit, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Free up the cable in the luggage compartment.

-- Detach the rear section of the right wheel housing liner and push it aside. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

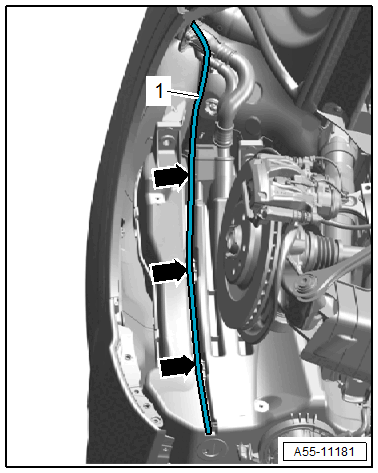

-- Free up the drain hose -1- -arrows-.

Courtesy of AUDI

-- Remove the fuel filler door trim. Refer to FUEL FILLER DOOR UNIT TRIM, REMOVING AND INSTALLING .

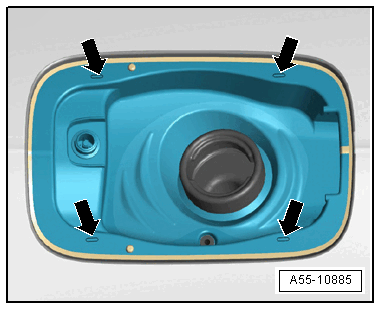

-- Release the fuel filler door unit at the markings. To do so puncture the respective marks designated with the -arrows- with a small screwdriver.

Courtesy of AUDI

-- At the top of the fuel filler door unit, pierce a small screwdriver through the fuel filler door markings over the retainers at an angle from below -in the direction of the arrow-.

Courtesy of AUDI

-- Gently lift the screwdriver upward and release the retainers.

-- On the underside, pierce the screwdriver at the markings at an angle from above to below.

-- Gently push the screwdriver downward and release the retainers.

-- Remove the fuel filler door unit with the drain hose gradually from the opening.

-- Disconnect the connector.

-- Remove the fuel filler door unit while guiding out the emergency release cable.
