Charge Door Unit, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

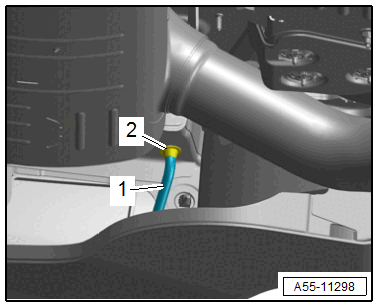

-- Grab behind the wheel housing liner and push the grommet -2- for the drain hose -1- inward.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the nut -1-.
-- Release the retainers -arrows-.
-- Remove fuse panel F -item 2- to the right.
-- Disconnect the connectors -4 and 5-.
-- Remove the charge door trim. Refer to CHARGE DOOR UNIT TRIM, REMOVING AND INSTALLING .
-- Remove the protective cover for the charging socket.

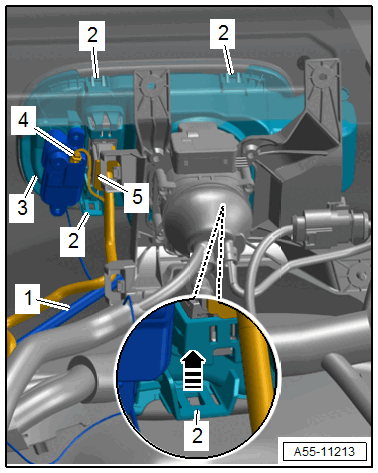

-- Open the retainers -2- -arrow-.
-- Remove the charge port door -3-, while guiding out the emergency release cable and drain hose -1- at the same time.
