Charge Door Unit Trim, Removing And Installing: Installing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

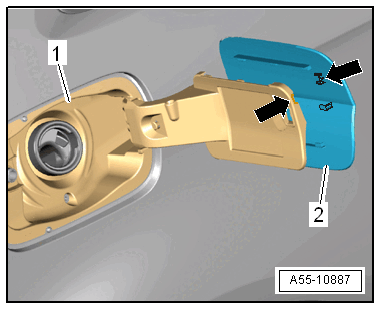

The guides on the trim -2- must be positioned behind the mounts -arrows- when placing on the charge door -1-.

Courtesy of AUDI

-- Slide the trim forward until the clips audibly engage.
