Starter, Removing And Installing, Vehicles With 3.0L TFSI Engine: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the right engine support. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .

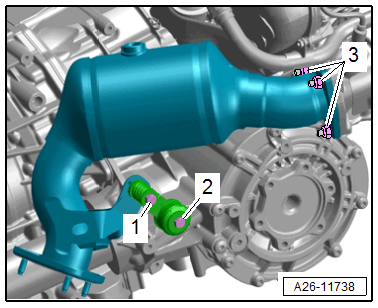

-- Remove the bolts -1 and 2- and then remove the mounting.

Courtesy of AUDI

-- Remove the bolt -arrow-.

Fig 1: Identifying Plenum

Courtesy of AUDI

-- Remove the bolt -5- and nut -4-.

Fig 2: Identifying Starter Overview

Courtesy of AUDI

-- Remove the starter -1-, disconnect the connector -3- and free up the B+ wire -2-.
