Starter, Removing And Installing, Vehicles With 3.0L TDI Engine: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the ground cable to the Battery -A- when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the front exhaust pipe. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Remove the right engine support. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .

Vehicles with Engine Codes DHXA, DHXB, DHXC, DPXA

Courtesy of AUDI

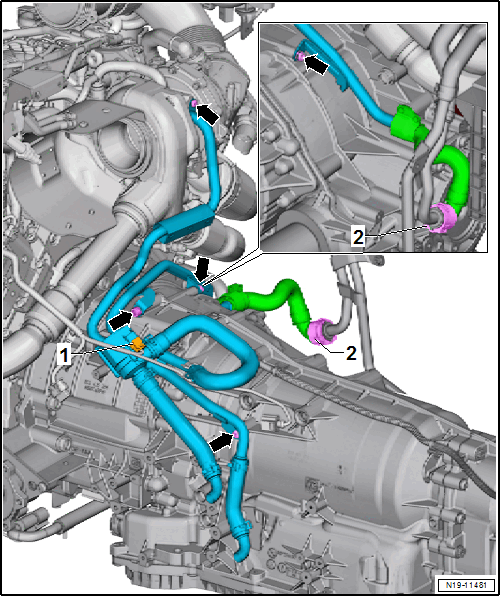

-- Remove the bolts -arrows- from the rear coolant pipe at the transmission.

CAUTION:

Risk of destroying the coolant pipes from deformation.

- Never change the bend of the coolant pipes.

-- Push the rear coolant pipe carefully to the side to remove the bolt for the starter.

Continuation for All Vehicles

Fig 1: Identifying Plenum

Courtesy of AUDI

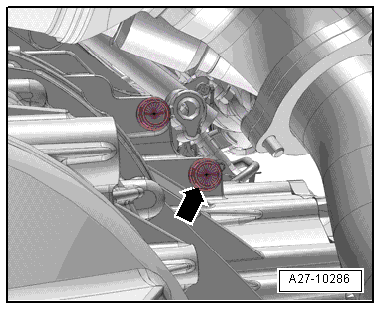

-- Remove the bolt -arrow-.

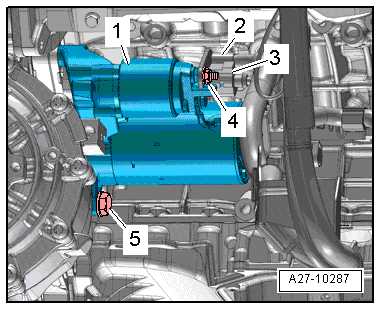

-- Remove the nut -4- and free up the 30/B+ wire terminal -2-.

Fig 2: Identifying Starter Overview

Courtesy of AUDI

-- Release and disconnect the connector -3-.

-- Remove the bolt -5-.

-- Remove the starter -1-.
