Starter, Removing And Installing, Vehicles With 2.0L TFSI Engine: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

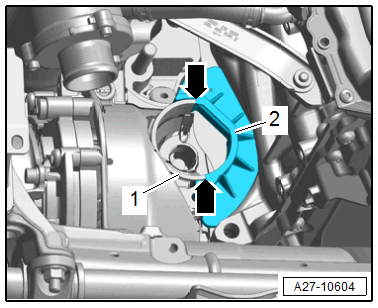

-- Make sure the seal -2- is seated correctly inside the starter opening before installing the starter.
- The seal must seal with the opening -1- for the starter -arrows-.
- To tighten the bolt -2-, insert the spacer sleeve -arrow- between the starter and transmission.
CAUTION:
There is a risk of damaging the starter through improper handling.
- Tighten the bolt only with the spacer sleeve installed between the starter and the transmission.
-- Connect the battery. Required actions. Refer to Connecting .
