7-Seater Versions
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

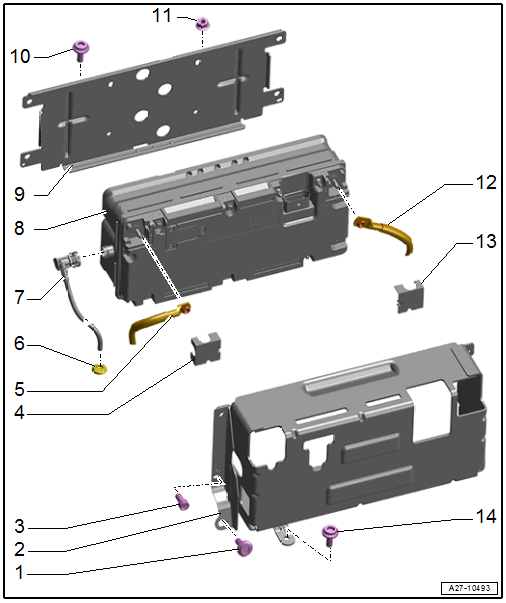

- Bolt
- 20 Nm
- Quantity: 2
- Protective Housing Upper Section
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 7-SEATER .
- Bolt
- 20 Nm
- Quantity: 4
- Positive Cable Cap
- Positive Cable
- 20 Nm
- Terminal 40
- Grommet
- Pressure Balance Hose
- Battery, 48 V -A6-
- Removing and Installing. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 7-SEATER .
- Battery Tray
- Bolt
- 20 Nm
- Nut
- 20 Nm
- Ground Wire
- 20 Nm
- Terminal 41
- De-energizing. Refer to 48V SYSTEM, DE-ENERGIZING .
- Ground Cable Cap
- Bolt
- 20 Nm
