BATTERY FANS Battery Fan 1 -V457-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- De-energize the 48V system. Refer to 48V SYSTEM, DE-ENERGIZING .
-- Remove the luggage compartment floor trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .

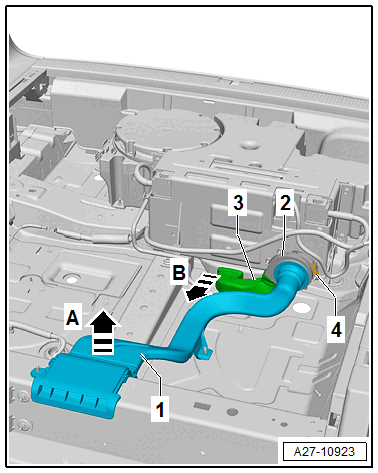

-- Loosen the front air duct -1- in the direction of -arrow A-.
-- Remove the front air duct -1- with the connection from the fan -2-.
-- Release and disconnect the connector -4- for the fan -2-.
-- Remove the rear air duct -3- from the fan connection -2- in direction of -arrow B-.

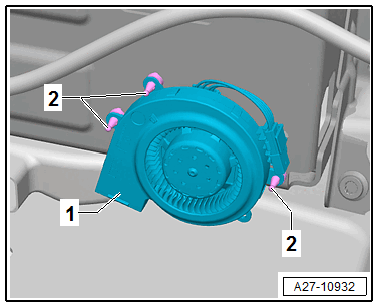

-- Loosen the battery cooling fan -1- from the rubber bushings -2-.
