Overview - BOSCH Generator From 2001
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The generators were implemented as a running change.

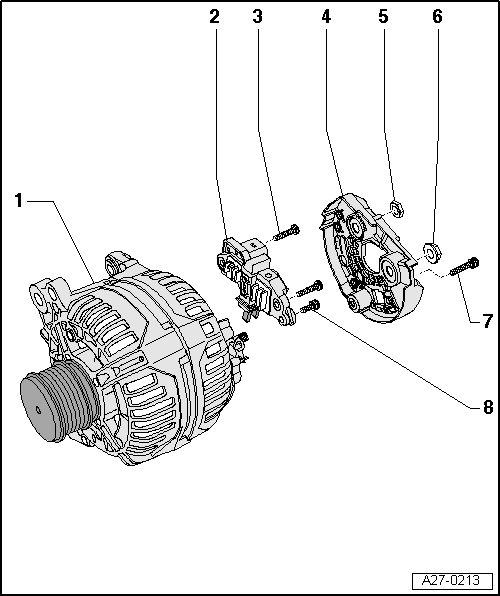

- Generator
- Voltage Regulator
- Removing and installing. Refer to VOLTAGE REGULATOR, BOSCH GENERATOR FROM 2001, REMOVING AND INSTALLING .
- Carbon brushes, checking. Refer to CARBON BRUSHES, CHECKING, ALL BOSCH GENERATORS FROM 2001
- Bolt
- 2.5 Nm
- Cover
- Nut
- 12 Nm
- Nut
- 30 Nm
- Bolt
- 3 Nm
- Bolt
- 1.5 Nm
