Reinforcement Brace, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air filter housing. Refer to AIR FILTER - 3.0L or AIR FILTER HOUSING, REMOVING AND INSTALLING - 2.0L .
-- Remove the headlamp cover. Refer to HEADLAMP COVER, REMOVING AND INSTALLING .

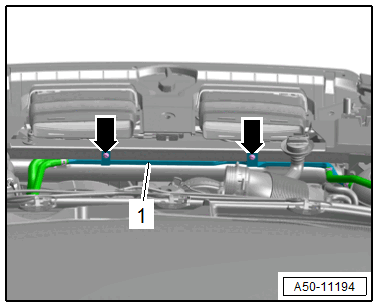

-- Vehicles with high-voltage system 4-cylinder engine: remove the bolts -arrows- and free up the coolant line -1-.
-- Free up the wiring harness.

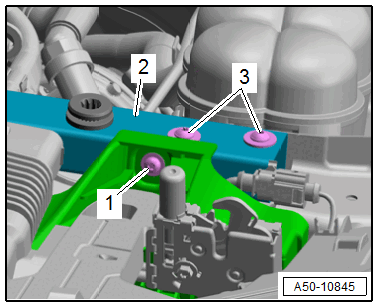

-- Remove the bolts -1 and 3-.
-- Remove the reinforcement brace -2-.
