Lock Carrier, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper carrier. Refer to BUMPER CARRIER, REMOVING AND INSTALLING .

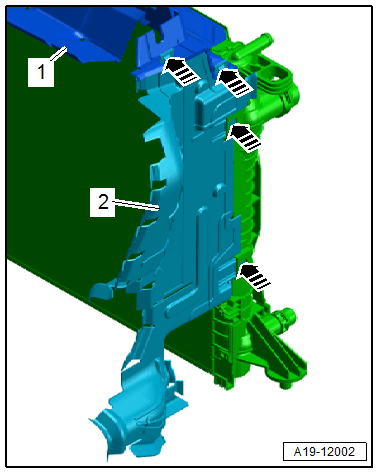

-- Release the catches with the Elbow Assembly Tool:T10118 -arrows- and lift the upper air duct -1- slightly and remove and side air duct -2-.

Courtesy of AUDI

-- Disconnect the connector -2- for the High Pressure Sensor -G65-.

Courtesy of AUDI

CAUTION:

Risk of destroying the refrigerant lines by tearing the inner film.

- Never bend the refrigerant lines to a radius smaller than r = 100 mm.

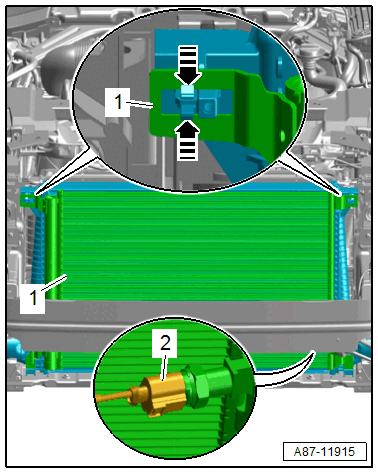

-- Release the catches -arrows- disengage the condenser -1- from the radiator and tie up to the side.

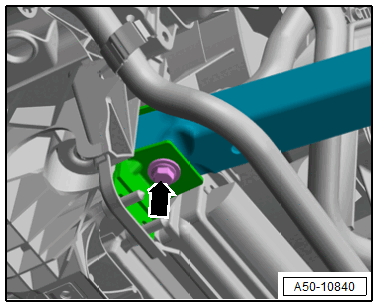

-- Remove the bolt -arrow-.

Courtesy of AUDI

-- Place the container of the Coolant Collection System :VAS 5014 or the Shop Crane - Drip Tray:VAS 6208 underneath.

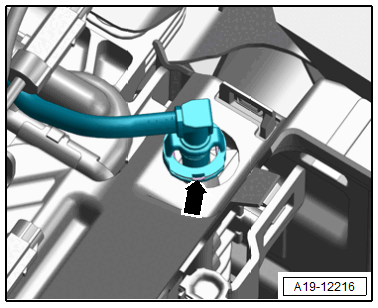

-- Lift the clamp -arrow- and remove the coolant hose from the lower right of the radiator and drain the coolant.

Courtesy of AUDI

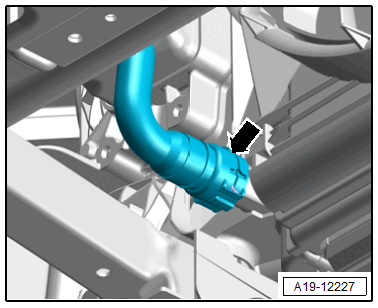

-- Equipped on some models: lift up the clamp -arrow- and remove the coolant hose from the lower left side of the radiator and drain the coolant.

Courtesy of AUDI

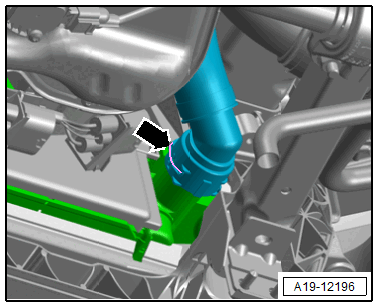

-- Equipped on some models: lift up the clip -arrow- and remove the coolant line from the charge air cooling circuit cooler.

Courtesy of AUDI

-- Remove the coolant hoses from the coolers.

CAUTION:

There is a risk of hand injury if the radiator fan turns on by itself.

- Do not reach into the radiator fan when disconnecting the connector.

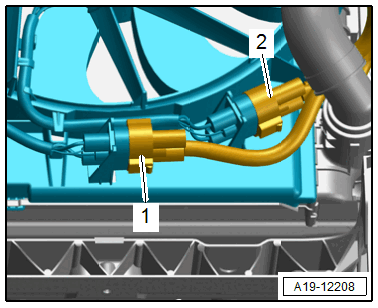

-- Disconnect the connectors -1 and 2- for the radiator fan.

Courtesy of AUDI

Vehicles with TDI Engine:

Courtesy of AUDI

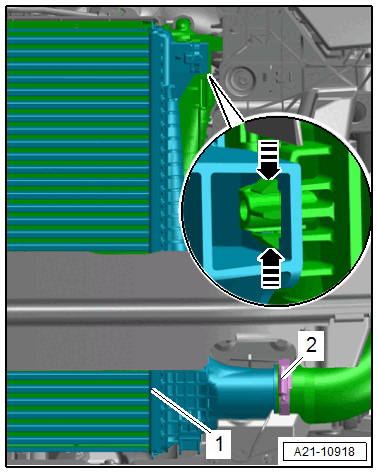

-- Vehicles with center charge air cooler: loosen the hose clamp -2- and remove the air duct hose from the center charge air cooler -1-.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS 6122 .

-- Vehicles with side charge air cooler: remove the side charge air cooler. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .

Continuation:

-- Free up the hoses and wires.

-- Disconnect the latch cable at the coupling and free it up on the lock carrier. Refer to OVERVIEW - RELEASE CABLE .

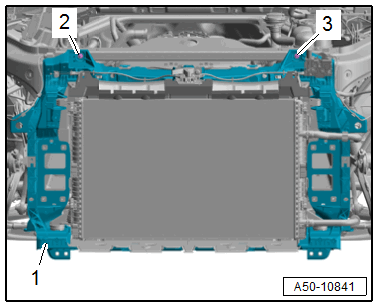

-- Have a second technician hold the lock carrier -1- and remove the bolts -2 and 3-.

Courtesy of AUDI

-- Remove the lock carrier with a second technician.

-- The following components must also be removed if the lock carrier is being replaced:

Front upper air duct pipe on the lock carrier. Refer to OVERVIEW - CHARGE AIR SYSTEM .
Radiator. Refer to RADIATOR, REMOVING AND INSTALLING .
Latch. Refer to LATCH, REMOVING AND INSTALLING .
Bracket for the lower longitudinal member. Refer to LOWER LONGITUDINAL MEMBER BRACKET, REMOVING AND INSTALLING .
