Lock Carrier Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the hook release lever. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
-- Remove the headlamp cover. Refer to HEADLAMP COVER, REMOVING AND INSTALLING .

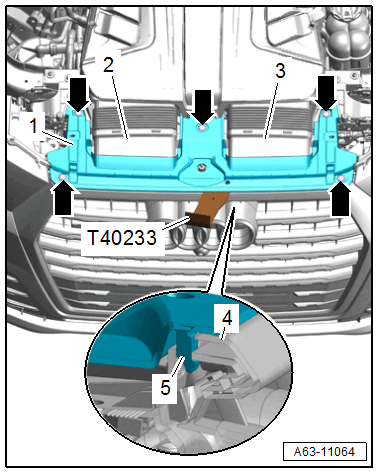

-- Remove the expanding clips -arrows-.
-- Release the catches -5- of the lock carrier cover -1- on the radiator grille -4- with the Removal Wedge:T40233 .
-- Remove the air ducts -2 and 3- from the air filter housing.
-- Remove the lock carrier cover.
