Tension Strut, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front section of the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, FRONT SECTION .
-- Lower the subframe. Refer to SUBFRAME, LOWERING .

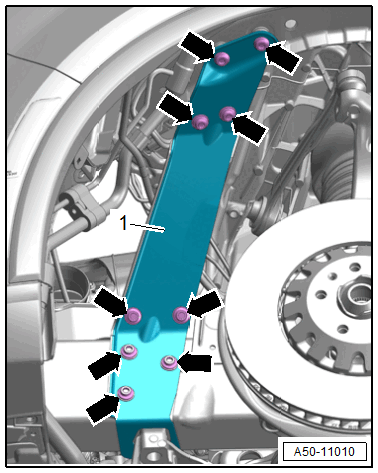

-- Remove the bolts -arrows-.
-- Remove the tension strut -1-.
