Fender, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the drip rail. Refer to DRIP RAIL, REMOVING AND INSTALLING .

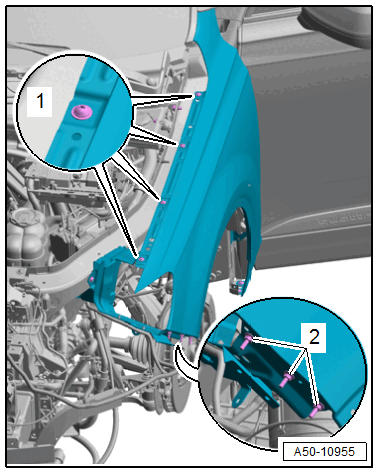

-- Remove the bolt -1-.
-- Open the front door.

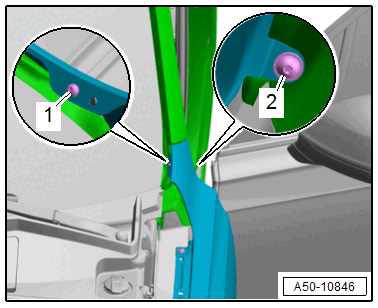

-- Remove the bolt -2-.
-- Remove the rear cover for the fender. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
-- Remove the wheel cover. Refer to WHEEL ARCH TRIMS, REMOVING AND INSTALLING, FRONT, BEFORE PRODUCT IMPROVEMENT .
-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
-- Remove the windshield washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

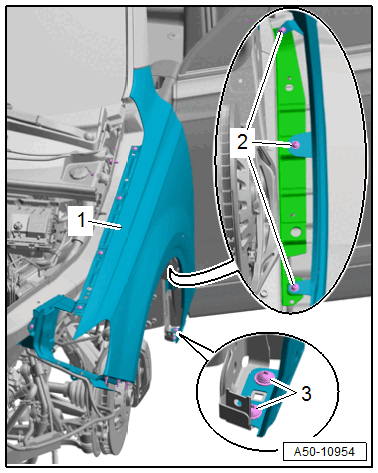

-- Remove the bolts -1 and 2-.
-- Remove the bolts -2 and 3-.
-- Remove the fender -1-.
