End Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front door. Refer to DOOR, REMOVING AND INSTALLING .

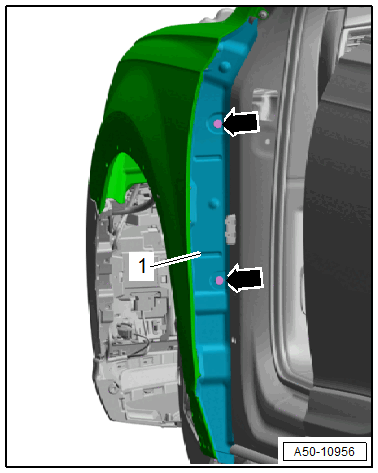

-- Remove the expanding rivets -arrows-.

GWWA50-10956Courtesy of AUDI

-- Remove the end panel -1- to the rear.
