Plenum Chamber End Plate Lower Cover, Removing And Installing, Right Side: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber end plate. Refer to PLENUM CHAMBER END PLATE, REMOVING AND INSTALLING .
-- Remove the fresh air intake. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .

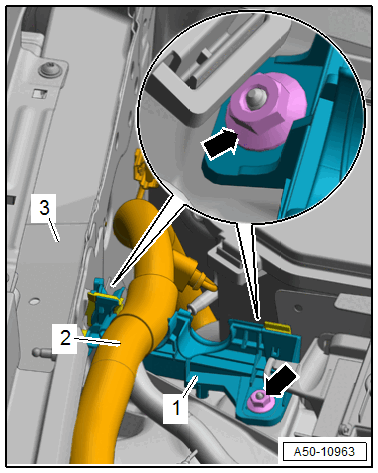

-- Remove the nuts -arrows-.
-- Free up the wiring harness -2-.
-- Lift the cover -1- and remove it from the body -3-.
