Plenum Chamber End Plate Lower Cover, Removing And Installing, Left Side: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber end plate. Refer to PLENUM CHAMBER END PLATE, REMOVING AND INSTALLING .

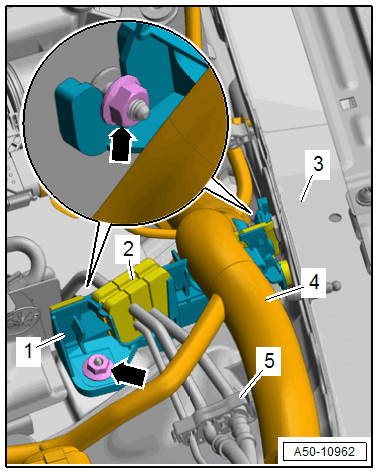

-- Open the cable bracket -5- and free up the brake lines with the grommet -2-.
-- Remove the nuts -arrows-.
-- Free up the wiring harness -4-.
-- Lift the cover -1- and remove it from the body -3-.
