Overview - Bulkhead

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

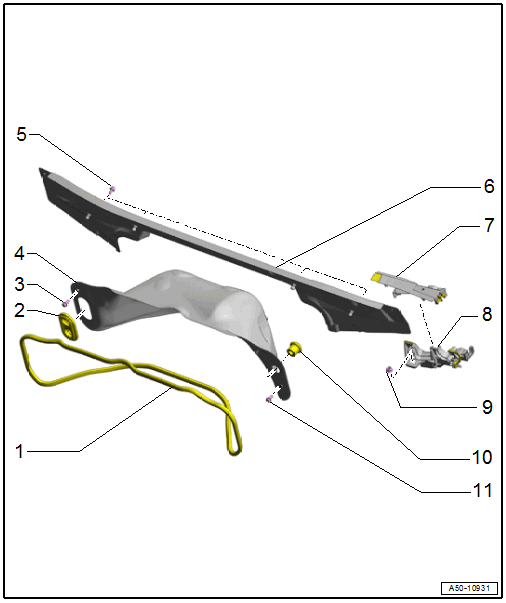

Fig 1: Exploded View Of Bulkhead

Courtesy of AUDI

Seal
Grommet
- for coolant lines
Bolt
- 10 Nm
Plenum Chamber Bulkhead
- Removing and Installing. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 10 Nm
Plenum Chamber End Plate
- Removing and Installing. Refer to PLENUM CHAMBER END PLATE, REMOVING AND INSTALLING .
Upper Cover
- For the plenum chamber end plate
- Removing and Installing. Refer to PLENUM CHAMBER END PLATE UPPER COVER, REMOVING AND INSTALLING .
Lower Cover
- For the plenum chamber end plate
- Removing and Installing. Refer to PLENUM CHAMBER END PLATE LOWER COVER, REMOVING AND INSTALLING .
Nut
- Quantity: 3
- 3 Nm
Grommet
- For the brake booster vacuum line
Bolt
- 10 Nm
