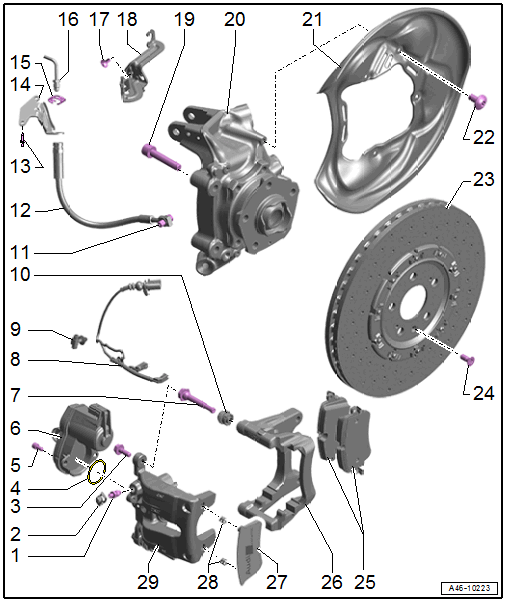

Overview - Ceramic Brakes Q7/Q8, Steel/Ceramic Brakes RSQ8
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bleed Screw
- 11 Nm
- Protective Cap
- Bolt
- 35 Nm
- Always replace after removing
- Self-locking
- When loosening and tightening, counterhold at the guide pin
- Seal
- Always replace after removing
- Bolt
- 13 Nm
- Always replace after removing
- Self-locking
- Electro-Mechanical Parking Brake Motor
- Left Parking Brake Motor -V282-
- Right Parking Brake Motor -V283-
- Guide Pin
- Check ease of movement
- Brake Pad Wear Indicator Wire
- Replace when replacing the brake pads.
- With Left Rear Brake Pad Wear Sensor -G36- /Right Rear Brake Pad Wear Sensor - G37-
- For inner brake pad
- Refer to BRAKE PAD WEAR INDICATOR WIRE, REMOVING AND INSTALLING
- Clip
- Protective Cap
- Replace if damaged
- Banjo Bolt
- 10 Nm +45°
- Replace together with the brake hose
- Permanent with seals
- Check for damage
- Clean any corrosion from the sealing surface on the brake caliper
- Brake Hose
- Replace if damaged
- Pay attention to the correct routing: make sure the brake hose is not blocked, bent or rubbing against the vehicle
- Make sure that tabs are properly seated in the grooves on the bracket.
- Rivet
- Bracket
- For the brake line/hose
- On the body
- Spring
- Replace if damaged
- Brake Line
- Brake line to brake hose tightening specification: 14 Nm
- Bolt
- Tightening specification. Refer to OVERVIEW - WHEEL BEARING .
- Bracket
- For the connectors
- Bolt
- 100 Nm +90°
- Always replace after removing
- Self-locking
- Wheel Bearing Housing
- Brake Shield
- Bolt
- 10 Nm
- Brake Rotor
- Allocation. Refer to the appropriate Electronic Parts Information.
- Wear limit specified on the brake rotor
Steel Brake Rotors
- Refer to BRAKE ROTOR, CHECKING, STEEL BRAKES
- Always replace on both axles.
- When replacing the brake rotors, also replace the brake pads.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING, STEEL BRAKES
Ceramic Brake Rotors
- Refer to BRAKE ROTORS, CHECKING, CERAMIC BRAKES
- Do not replace the damaged or worn brake rotor individually on a complete axle.
- If only one brake rotor is replaced, the brake pads can be reused, if they do not show any damages.
- Pay attention to the side of the vehicle specified on the brake rotor "L" / "R" and the running direction "arrow"
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING, CERAMIC BRAKES
- Bolt
- 10 Nm
- Brake Pads
- Allocation. Refer to the appropriate Electronic Parts Information.
- Check the pad thickness. For the wear limit. Refer to BRAKE PADS, CHECKING THICKNESS .
- Refer to BRAKE PADS, REMOVING AND INSTALLING
- Always replace on both axles.
- Refer to Fig 2
- Brake Carrier
- Cover
- Clips
- Brake Caliper
- Allocation. Refer to the appropriate Electronic Parts Information.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING, STEEL BRAKES
- Refer to BRAKE CALIPER, REPLACING
- Servicing. Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING .
Brake Pad Installation Position
-- Pay attention to the labeling on the backing plate of the brake pads.
GA - Outside
HB - Inner
or:
E - Inner Left
Q - Inner Right
S - Outer Left
D - Outer Right
If the labeling is not present, the installation position can still be determined using the shape of the locking plate.
Small backing plate - outside
Large backing plate - Inside
