Brake Shield, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the brake rotor. Refer to BRAKE ROTOR, REMOVING AND INSTALLING .

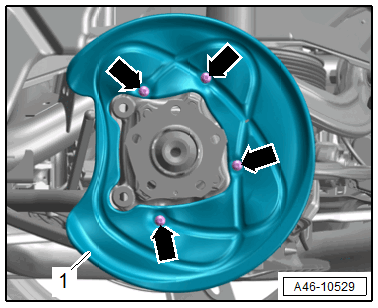

-- Remove the bolts -arrows- and remove the brake shield -1-.

GWWA46-10529Courtesy of AUDI
