Overview - Parking Brake

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Due to a mechanical or electrical malfunction, the parking brake may need to be released manually in order to move the vehicle. Refer to PARKING BRAKE, MANUALLY LOOSENING .

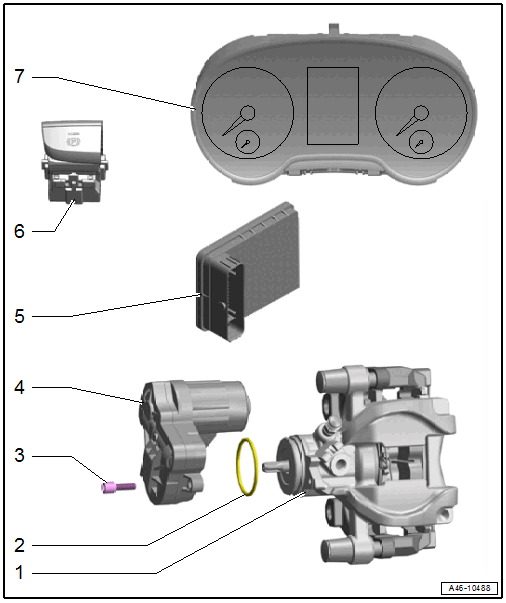

Fig 1: Exploded View Of Parking Brake

Courtesy of AUDI

Rear Brake Caliper
Seal
- Always replace after removing
Bolt
- 12 Nm
- Always replace after removing
- Self-locking
Electro-Mechanical Parking Brake Motor
- Left Parking Brake Motor -V282-
- Right Parking Brake Motor -V283-
- Refer to Left Parking Brake Motor -V282- /Right Parking Brake Motor -V283-, REMOVING AND INSTALLING
ABS Control Module -J104-
- With integrated control for the electro-mechanical parking brake
- Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING
Electromechanical Parking Brake Button -E538-
- With Electromechanical Parking Brake Indicator Lamp -K213-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
Instrument Cluster
- With Instrument Cluster Control Module -J285- for the display of the indicator and warning lamps
