Brake Pads, Removing And Installing, Ten-Piston Steel Brake: Installing

Install in the reverse order of removal while noting the following:

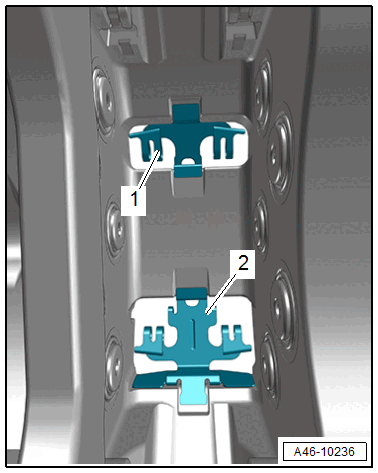

• The brake pad springs -1 and 2- must be completely engaged in the brake caliper.

  Courtesy of AUDI

-- Check the brake rotors for wear and damage. Refer to BRAKE ROTOR, CHECKING .

• Use the complete repair kit when installing new brake pads.
• Components to be used when installing new brake pads. Refer to the appropriate Electronic Parts Information.

• Use only mineral spirits to clean the brake caliper.
• Check the protective caps of the brake caliper pistons for damage and install the complete repair kit, if necessary. Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING .

-- Clean the brake caliper at the contact surfaces -arrows- for the brake pad retaining plates.

Courtesy of AUDI

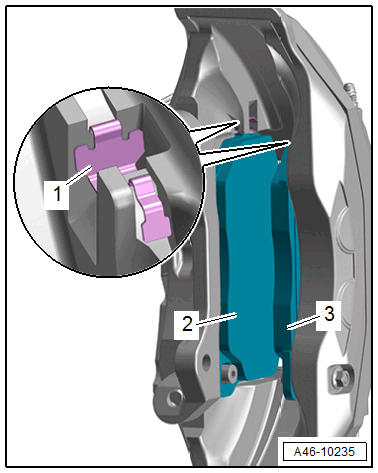

-- Clip the brake pad retaining plates -1- into the brake caliper.

Courtesy of AUDI

-- If re-using, install the marked brake pads in the same location.

-- Insert the brake pads -2 and 3- into the brake caliper one after the other by pressing each brake pad against the brake pad springs and pushing them all the way onto the brake pad retaining plates.

-- Install the brake caliper. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .

-- Install the brake pad wear indicator wire. Refer to BRAKE PAD WEAR INDICATOR WIRE, REMOVING AND INSTALLING .

-- With the vehicle stationary, firmly press the brake pedal several times so that the brake pads in the operating condition properly sit in their respective position.

-- Check brake fluid level, and fill if necessary.
