Brake Pad Wear Indicator Wire, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

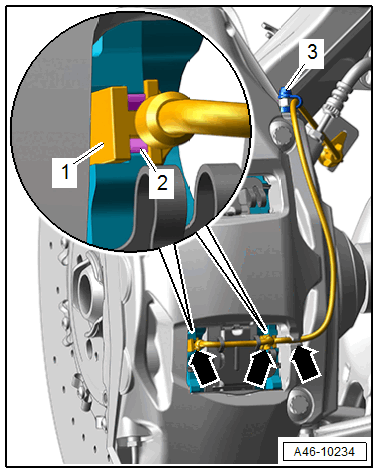

Vehicles with Six-Piston Brake:
-- Insert the contact -1- for the brake pad wear indicator with the clip -2- until it engages in the brake pad.
-- Secure the brake pad wear indicator wire with the protective cap -3- and engage on the brake caliper -arrows- as shown.
Vehicle with Ten-Piston Steel Brake:
-- Secure the brake pad wear indicator wire with the protective cap -3- and engage on the brake caliper -arrows- as shown.
-- Insert the contact -1- for the brake pad wear indicator with the clip -2- until it engages in the brake pad.
Continuation for All Vehicles:
-- Bring the connector -5- into its installed position and turn in the direction of -arrow- until the tab -2- engages in the opening -1- on the bracket.
-- Connect the connector -4-.
