Brake Caliper, Removing And Installing, RSQ8: Removing

-- Remove the front wheel while observing the safety precautions for vehicles with ceramic brakes. Refer to WHEELS AND TIRES .

-- Disconnect the connector -1- for the brake pad wear indicator.

Courtesy of AUDI

-- Release the connector -2- for the brake pad wear indicator from its bracket in direction of -arrow A- while turning it 90° at the same time in direction of -arrow B-.

-- Free up the brake hose -3- on the bracket.

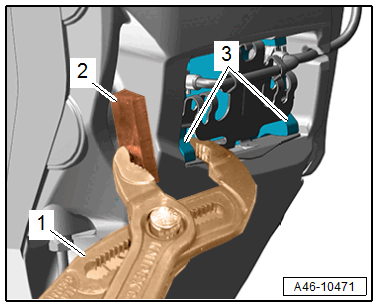

-- Pushing the inner brake pad -3- slightly into the brake caliper with suitable pliers -1- makes it easier to remove the brake caliper from the brake rotor. To prevent damage to the surface of the brake caliper, place a piece of rubber -2- between the pliers and brake caliper.

Courtesy of AUDI

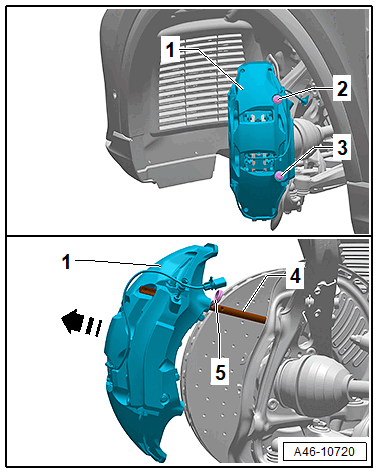

-- Remove the bolt -2-.

Courtesy of AUDI

-- Install the Bracket Holder: T40423/1  -4- in the upper thread hand-tight.

-- Remove the bolt -3-.

-- Remove the brake caliper -1- as far as possible in direction of -arrow-, until the brake rotor is freed up.

-- Lock the brake caliper -1- in a suitable position using the clamp -5- from the Bracket Holder:T40423  .

-- Pivot the brake caliper -1- outward in direction of -arrow-.

Courtesy of AUDI

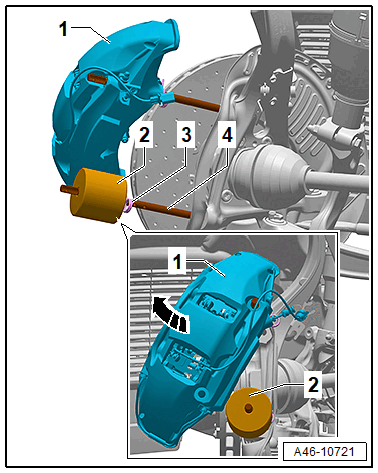

-- Install the Bracket Holder: T40423/1  -4- in the lower thread hand-tight.

-- Lock the Bracket Holder - Sleeve:T40423/2  -2- to the height of the brake caliper -1- using the clamp -3- from the Bracket Holder:T40423  .

-- Place the brake caliper -1- on the Bracket Holder - Sleeve:T40423/2  -2-.
