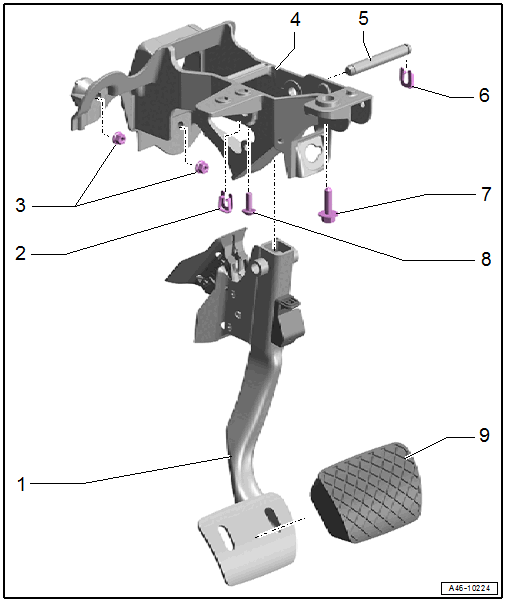

Overview - Brake Pedal
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Brake Pedal
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER
- Refer to BRAKE PEDAL, ATTACHING TO BRAKE BOOSTER
- Refer to BRAKE PEDAL, REMOVING AND INSTALLING
- Clip
- Always replace after removing
- Nuts
- 8 Nm
- Mounting Bracket
- For foot pedal assembly
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Refer to MOUNTING BRACKET, REMOVING AND INSTALLING
- Mounting Pin
- For brake pedal
- Clip
- Always replace after removing
- Bolt
- 20 Nm
- Pedal bracket to steering column
- Bolt
- 8 Nm
- Holds the mounting pin in place
- Pedal Rubber
