Mounting Bracket, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .
Vehicles without High-Voltage System:

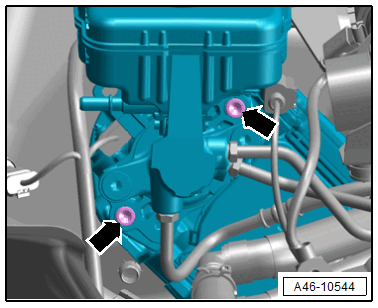

-- Remove the bolts -arrows-.
Vehicles with High-Voltage System:
-- Remove the bolts -arrows-.
-- Disconnect the connector -3- and free up the wire.
-- Remove the nuts -1-.
-- Remove the bolt -2-.
-- Remove the mounting bracket with the brake pedal and accelerator pedal module installed.
-- Remove the brake pedal. Refer to BRAKE PEDAL, REMOVING AND INSTALLING .
-- Remove the accelerator pedal module. Refer to ACCELERATOR PEDAL POSITION SENSORS -G79- / -G185-, REMOVING AND INSTALLING .
