Engine Support Bearing, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi Q7 and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

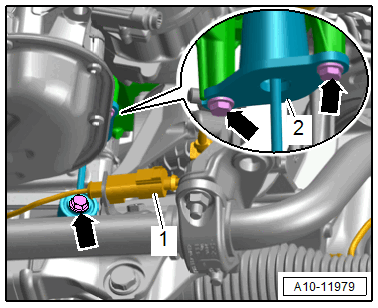

-- If installed, remove the connector -1- from the bracket and push to the side.
-- Remove the bolts -arrows-, remove the engine support mount -2- (shown left).
