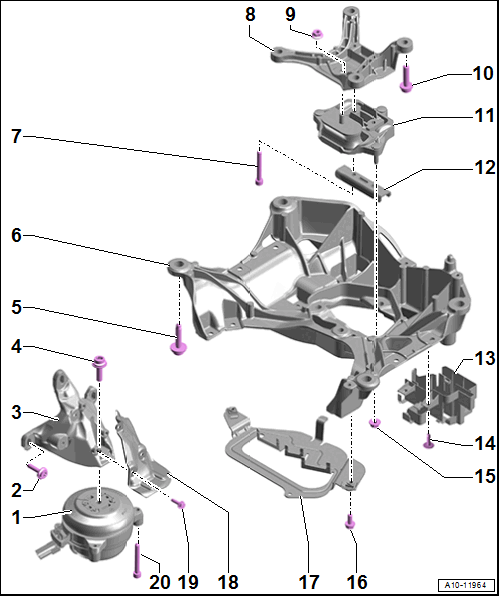

Overview - Transmission Mount for Automatic Transmission, Audi A8
WARNING: This page is about a different car, the 2024 Audi Q7 and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Side Transmission Mount
- with
- Transmission Mount Valve 1 -N262- right
- Transmission Mount Valve 2 -N263- left
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- with
- Bolt
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Side Transmission Support
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Bolt
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Tunnel Crossmember
- Removing and Installing. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Bolt
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Rear Transmission Support
- Removing and Installing. Refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING, VERSION 1 .
- Nut
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Bolt
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Rear Transmission Mount
- Removing and Installing. Refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING, VERSION 1 .
- Stop
- For the transmission mount
- Not Installed
- Not Installed
- Nut
- Tightening specifications. Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Bolt
- 9 Nm
- Bracket
- For the connectors
- Heat Shield
- Bolt
- 9 Nm
- Bolt
- 20 Nm
