Door Hinges With Separated Arrester, Cleaning And Lubricating

Special tools and workshop equipment required

• Universal Oil Spray:G 000 115 A2  for door arrester and door hinges

Requirements:

• Vehicle must be at least at room temperature.

Procedure:

-- First clean the lubricated areas with a lint-free cloth.

-- Lubricate the upper and lower door hinge at the marked locations -arrows- and the separate arrester -arrows- with Universal Oil Spray:G 000 115 A2  .

Door hinge:

Fig 1: Door Hinge

Courtesy of AUDI

Door arrester:

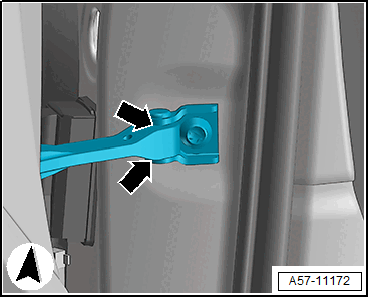

Fig 2: Door Arrester

Courtesy of AUDI

-- Move the door multiple times, to allow the universal oil spray to seep in.

-- Remove the excess lubricant from all door hinges with a cloth.

-- Repeat the cleaning and lubricating procedure on all vehicle doors.
