Connected Gateway, Replacing Emergency Battery: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition and all electrical equipment and remove the ignition key.
-- Remove the carpet on the driver side. Refer to CARPET, REMOVING AND INSTALLING .

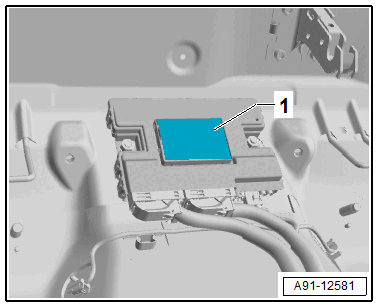

-- Release the retainers and remove the cover -1- from the Connected Gateway upward in the -direction of the arrow-.

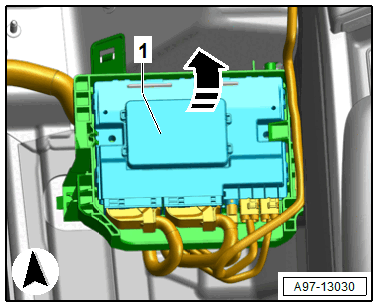

-- Tilt the Emergency Battery -- -1- out of the Data Bus on Board Diagnostic Interface -J533-.
-- Release and disconnect the connector.
