Air Quality Package, Replacing Fragrance Canister

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

The canisters with fragrance for the Air Quality Package -9- are located behind the driver side instrument panel cover under the steering wheel.

Courtesy of AUDI

Removal Procedures:

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

Procedure:

-- Turn the fragrance canister clockwise and remove.

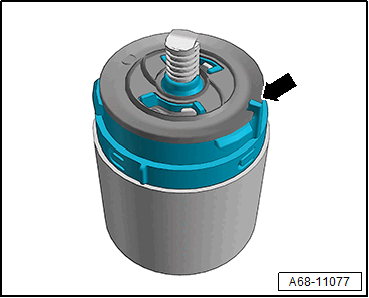

-- Insert the new fragrance canister: when inserting, the tab -arrow- must face toward the front of the vehicle. Install the canister counter-clockwise.

Courtesy of AUDI

-- Install the instrument panel cover according to the description in the repair information.

-- After replacing the fragrance canister, connect the diagnostic tester and reset the level through Guided Function.

NOTE:

Always pay attention to the layout of the respective fragrance locations.
