Reflector, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

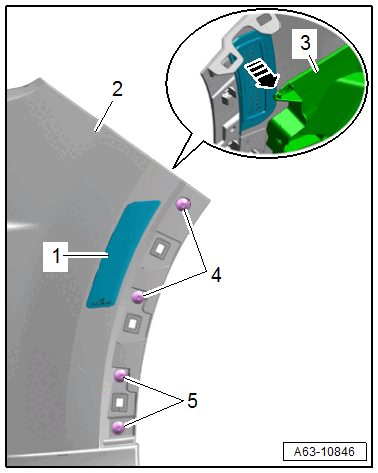

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bolts -4 and 5-.
-- Push the reinforcement -3- as far as possible to the side.
-- Carefully warm the reflector -1- using the Wiring Harness Repair Set - Hot Air Blower:VAS1978/14A .
-- Carefully remove the reflector from the bumper cover -2- -arrow-.
