Molded Foam Part, Removing And Installing: Installing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

Risk of damaging the pressure hose by deforming it.

- Never kink or stretch the pressure hose.

For Pressure Hoses with a Color Marking:

Courtesy of AUDI

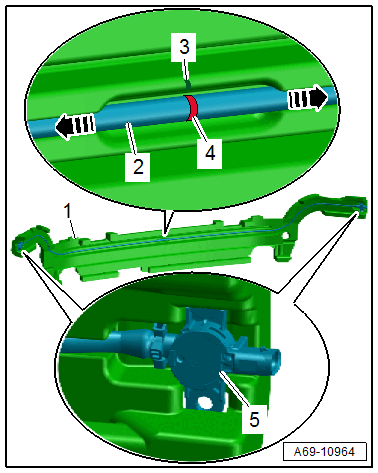

-- Position the pressure hose -2- at the center of the color mark -4- in the recess at the specified marking -3- in the molded foam part -1-.

For Pressure Hoses without a Color Marking:

-- Measure out and mark the center of the pressure hose.

-- Position the pressure hose evenly in both directions -arrows- in the recess in the molded foam part.

Continuation:

CAUTION:

Pyrotechnical components can deploy unintentionally.

Risk of injury.

- Discharge the static electricity: quickly touch the door striker.

-- Engage the pedestrian protection crash sensor -5- into the molded foam part.

-- Attach the connector -1- to the crash sensor until it clicks into place -arrow-.

Connector Lock on Pedestrian Protection Crash Sensor

Fig 1: Identifying Connector

Courtesy of AUDI

-- Push in the connector lock -2- to secure the connector.
