Impact Guard, Removing And Installing, S Line From Product Improvement: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
-- Remove the center trim molding.

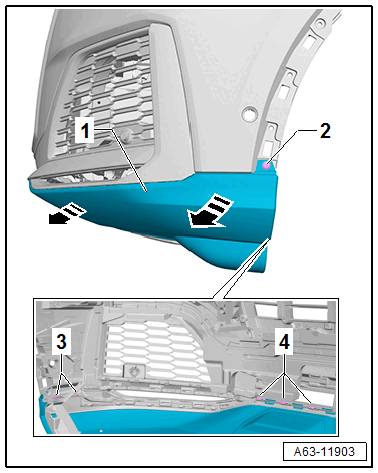

-- Remove the bolt -2- on the left and right.
-- Release the catches -3 and 4-.
-- Starting from the outside, remove the impact guard -1- from the bumper cover -arrows-.
