Bumper Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Detach the front section of the front wheel housing liner near the bumper. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, FRONT SECTION .

-- Place a drip tray under the separating point for the washer fluid hose.

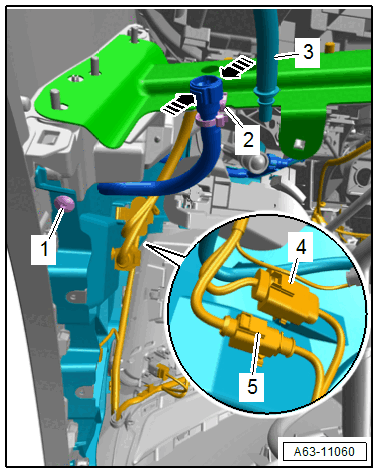

-- Clamp off the washer fluid hose -3- with the Hose Clamps - Up To 25mm Hose Clamps - Up To 25mm:3094 .

Courtesy of AUDI

-- Push the release button -arrows- and disconnect the washer fluid hose for the headlamp washer system.

-- Seal off the hose coupling with clean plugs from the Engine Bung Set:VAS 6122 .

-- Free up the washer fluid hose bracket -2-.

-- Disconnect the connectors -4 and 5-.

-- Remove the bolt -1- for the bumper side section.

-- Loosen the front wheel cover in the area of the bumper side section. Refer to WHEEL ARCH TRIMS, REMOVING AND INSTALLING .

-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

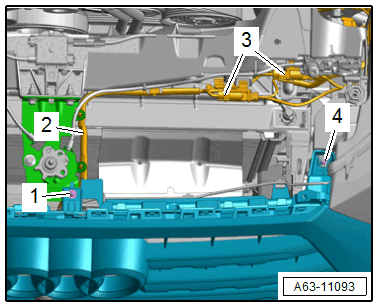

-- If equipped, free up and disconnect the antenna wires -3-.

Courtesy of AUDI

-- Free up the wiring harness -2-.

-- Remove the bolts -1 and 4-.

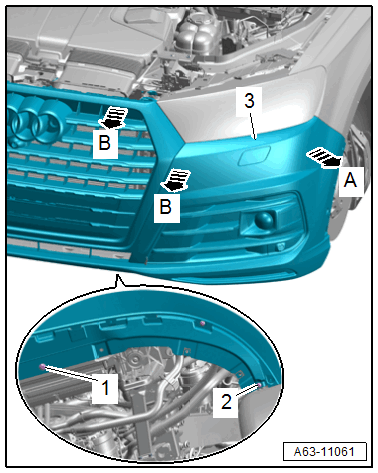

-- Remove the bolts -1 and 2-.

Courtesy of AUDI

-- Disengage the side section -3- from the front side panel -arrow A- and remove the bumper cover toward the front with the help of a second technician -B arrows-.
