Bumper Carrier, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the molded foam part. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
-- If equipped, remove the left and right charge air cooler air duct. Refer to OVERVIEW - CHARGE AIR SYSTEM - 2.0L , OVERVIEW - CHARGE AIR SYSTEM - 3.0L .
-- Release and disconnect the connectors -1 and 2-.
-- Free up the wiring harness at the bumper carrier.
-- Mark the bolts for reinstallation.

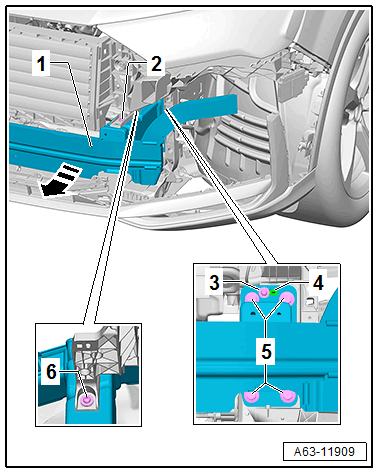

-- Remove the bolts -2, 3, 5 and 6-.
-- Remove the bumper carrier -1- from the tab -4- and guide it under the headlamps -arrow-.
-- If the bumper carrier is to be replaced, also remove the following components:
- Remove the bracket for the outside air temperature sensor. Refer to Outside Air Temperature Sensor -G17- BRACKET, REMOVING AND INSTALLING .
