Side Air Duct, Removing And Installing, S Line, From Product Improvement: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the impact guard. Refer to IMPACT GUARD, REMOVING AND INSTALLING, S LINE FROM PRODUCT IMPROVEMENT .
-- Remove the center air guide. Refer to CENTER AIR DUCT, REMOVING AND INSTALLING, S LINE, FROM PRODUCT IMPROVEMENT .
-- Free up the wires from the air duct.

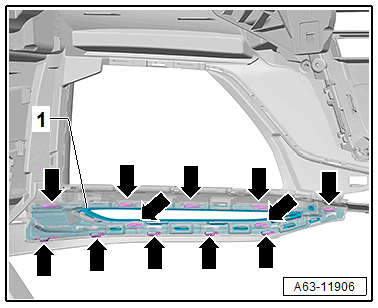

-- Release the retainers -arrows-.
-- Remove the cap -1-.
-- Release the catches -arrows-.
-- Remove the air duct -1-.
