Center Air Duct, Removing And Installing, S Line, From Product Improvement: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

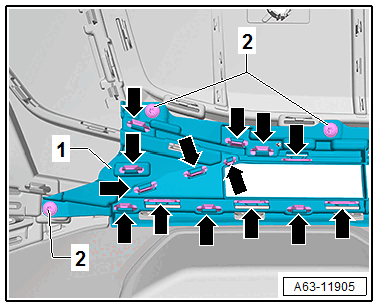

-- Remove the bolts -2-.

GWWA63-11905Courtesy of AUDI

-- Release the retainers -arrows-.

-- Remove the air duct -1-.
