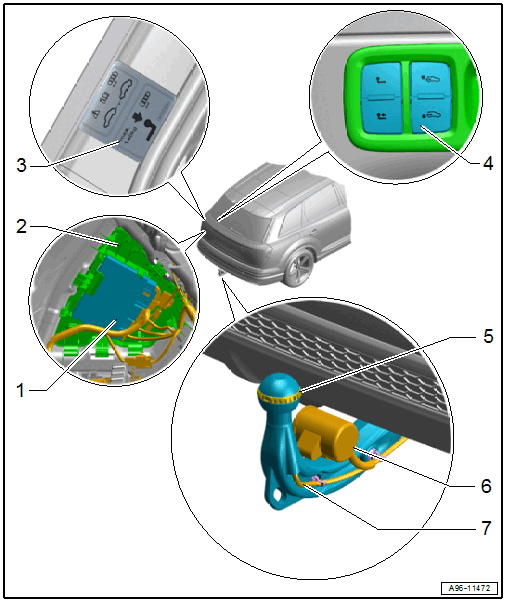

Overview - Socket And Towing Recognition Control Module
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Towing Recognition Control Module -J345-
- Removing and installing. Refer to Trailer Hitch .
- Frame
- For the Towing Recognition Control Module -J345-
- Information Label
- On the body on the left rear
- Power Pivoting Trailer Hitch Button -E474-
- Removing and Installing. Refer to Loading Sill Lowering Control Head -E682- /Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING .
- Trailer Hitch Bend Angle Sensor -G820-
- Removing and installing. Refer to OVERVIEW - TRAILER HITCH .
- Trailer Socket -U10-
- Removing and installing. Refer to Trailer Hitch .
- Connector
