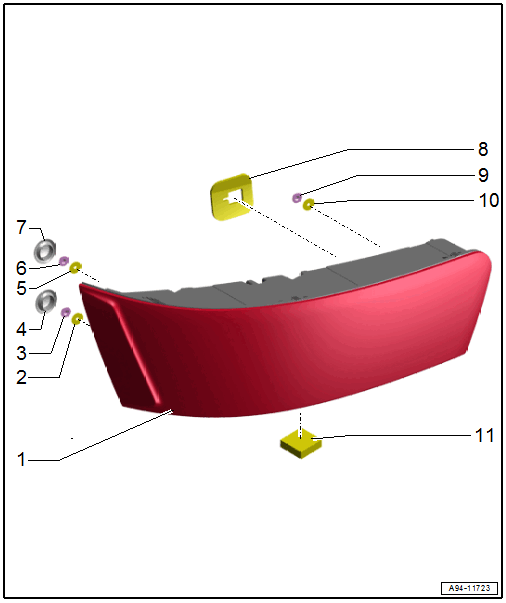

Overview - Rear Lid Tail Lamps
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Tail Lamp
- In the rear lid
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Seal
- Replace if damaged
- Nut
- Tightening specification and sequence. Refer to Fig 2.
- Grommet
- Seal
- Replace if damaged
- Nut
- Tightening specification and sequence. Refer to Fig 2.
- Grommet
- Seal
- Replace if damaged
- Self-adhesive
- Nut
- Tightening specification and sequence. Refer to Fig 2.
- Seal
- Replace if damaged
- Seal
- Replace if damaged
- Self-adhesive
Tightening Specification and Sequence for the Tail Lamps
-- Tighten the nuts for the tail lamps to 3.5 Nm and in the sequence -1, 2 and 3-.
