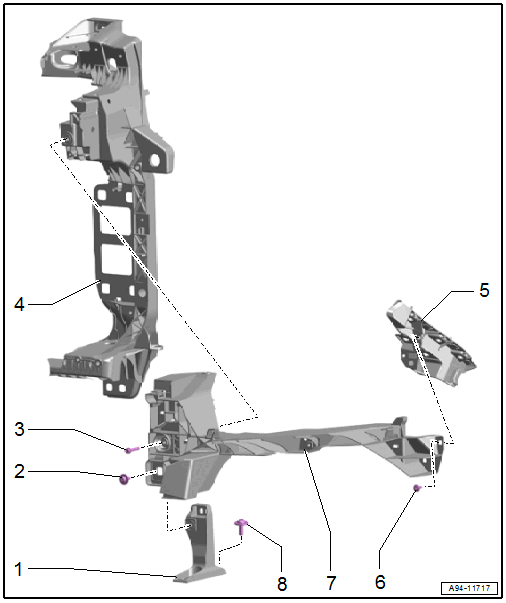

Overview - Headlamps, Headlamp Mount
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Support
- For the headlamp mount
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Lock Carrier
- For mounting the headlamp
- Mount
- For the bumper cover
- To secure the headlamp mount
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Mount
- For headlamp
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
