Left Light Control Module -J1018- /Right Light Control Module -J1023-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left or right headlamp cover. Refer to Front Bumper .

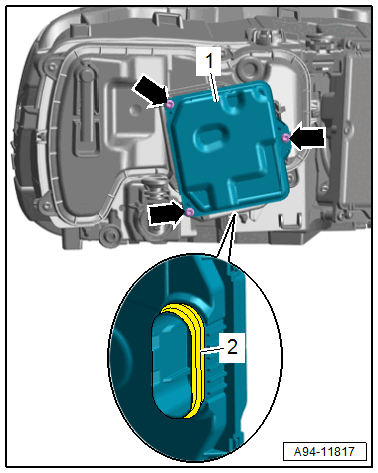

-- Remove the bolts -arrows-.
-- Remove the power output module -1-.
