Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

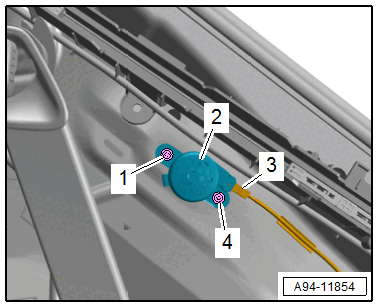

-- Remove the bolts -1 and 4-.
-- Remove the buzzer -2- with the expanding clips.
-- Disconnect the connector -3-.
