Telephone Baseplate -R126-, REMOVING AND INSTALLING, WITHOUT WIRELESS CHARGER: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
-- Release and disconnect the connectors.

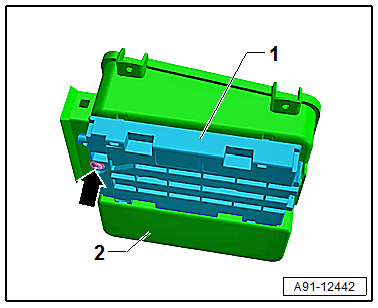

-- Remove the bolt -arrow-.
-- Remove the Telephone Baseplate -R126- -1- from the storage compartment -2-.
