Overview - Telephone, AUDI Phone Box Light, 9ZV From My 2021

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

The Control Module for Emergency Call Module and Communication Unit -J949- is installed and is used for hands-free calling.

The Cellular Telephone -R54- is done via Bluetooth using the wireless data transfer antenna Wireless Data Transfer Antenna -R336- /Wireless Data Transfer Antenna 2 -R366- and the Bluetooth Antenna -R152- in the Roof Antenna -R216-.

It can be operated using the MMI Infotainment system or by the Cellular Telephone -R54-.

The Left Front Microphone -R140- and the Right Front Microphone -R141- are installed in the Front Roof Module -WX3-.

The Mobile Device Charger 1 -J1146- (Audi phone box light) is installed in the front center console storage compartment. The Mobile Device Charger 1 -J1146- is only equipped with a module for wireless charging of the corresponding Cellular Telephone -R54-.

9ZV - Audi phone box light

Courtesy of AUDI OF AMERICA, LLC

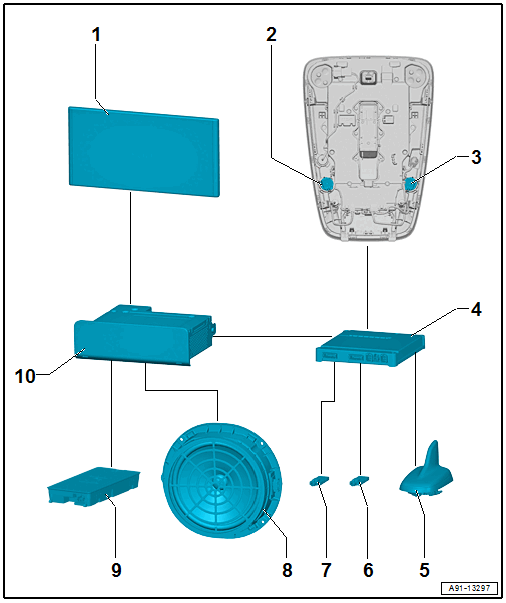

Front Information Display Control Head -J685-, display in center of the instrument panel
Left Front Microphone -R140-
Right Front Microphone -R141-
Control Module for Emergency Call Module and Communication Unit -J949- under the right front seat
Bluetooth Antenna -R152- in the Roof Antenna -R216-
Wireless Data Transfer Antenna -R336-, window antenna located in the rear window/ right rear side window
Wireless Data Transfer Antenna 2 -R366- on the Mirror Base
Sound Systems
Mobile Device Charger 1 -J1146- in the front center console storage compartment
Information Electronics Control Module 1 -J794- behind the glove compartment

Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .

Fault Finding is performed using the "Guided Fault Finding" on the Vehicle Diagnostic Tester .

Antenna Wires, Repairing. Refer to ANTENNA WIRES, REPAIRING .

Notes on Bluetooth technology

A standardized radio connection is used for data transfer between the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- - Bluetooth Technology. The range of the radio connection is approximately 10 m (32.8 feet).
