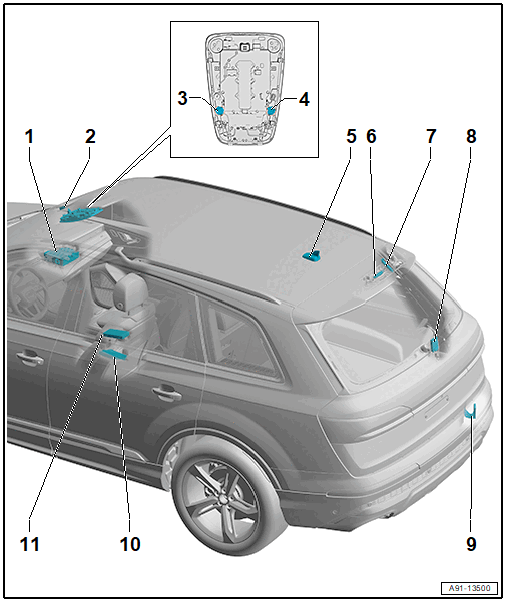

Component Location Overview - Telephone System, From My 2021
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Wireless Data Transmission Antenna 2 -R366-
- In mirror base
- Removing and Installing. Refer to Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Bluetooth Antenna -R152-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Antenna Amplifier -R24-
- For the Wireless Data Transfer Antenna -R336- (window antenna), QV0/QV3
- Removing and Installing. Refer to Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 1 -R82- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING .
- Antenna Amplifier 3 -R112-
- For the Wireless Data Transfer Antenna -R336- (window antenna), QU1/QV1/Q0A/Q0B
- Removing and Installing. Refer to Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING .
- Cellular Telephone Amplifier -R86-
- Behind the right luggage compartment side trim panel
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- LTE Antenna 3 -R330-
- Under the rear bumper cover on the right side
- Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Under the right front seat
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Mobile Device Charger 1 -J1146-
- Applicable for only 9ZX option code
- In the front center console storage compartment
- Removing and Installing. Refer to Mobile Device Charger 1 -J1146-, REMOVING AND INSTALLING .
