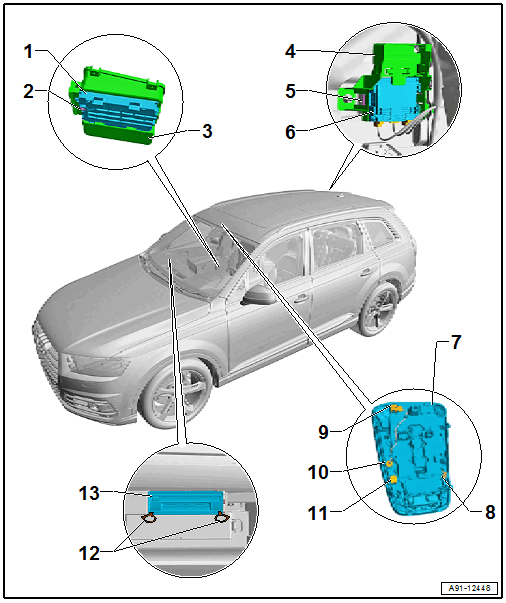

Component Location Overview - Telephone System, Before Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Telephone Baseplate -R126-
- Removing and Installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING, WITHOUT WIRELESS CHARGER .
- wireless charger
- Removing and Installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING, WIRELESS CHARGER .
- Removing and Installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING, WITHOUT WIRELESS CHARGER .
- Bolt
- 1 Nm
- Front Center Console Storage Compartment
- Removing and Installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Bracket
- Retainer
- Cellular Telephone Amplifier -R86-
- Behind the right luggage compartment side trim panel
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Right Front Microphone -R141-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- 4-Pin Connector -T4-
- Interior Microphone -R74-
- Removing and Installing. Refer to Interior Microphone -R74-, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Radio Removal Tool:T10057
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
