Subwoofer -R211-, REMOVING AND INSTALLING, 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the luggage compartment floor.

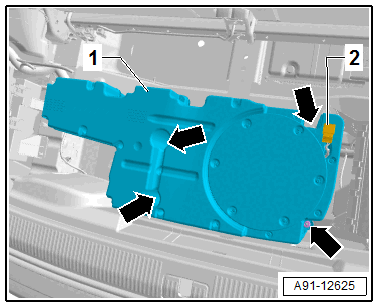

-- Remove the nuts -arrows- from the Subwoofer -R211- -1-.
-- Release and disconnect the connector -2- from the Subwoofer -R211- -1-.
-- Remove the Subwoofer -R211- -1- upward.
