Left Front Midrange Speaker 2 -R276- /Right Front Midrange Speaker 2 -R277-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the A-pillar upper trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

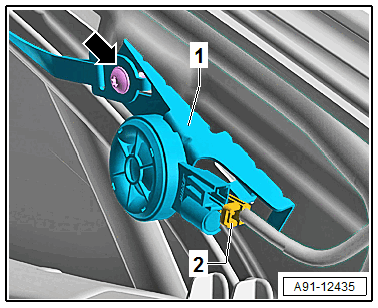

-- Release and disconnect the connector -2- from the Left Front Midrange Speaker 2 -R276- -1-.
-- Remove the bolt -arrow-.
-- Push the Left Front Midrange Speaker 2 -R276- -2- upward and remove.
